Discover the diversity of elevators we offer at Alamex to satisfy your needs with the best style and functionality
Traction elevator machine room less
Hydraulic elevator
Service elevator
TRACTION
Integer ut sollicitudin justo. Class aptent taciti sociosqu ad litora torquent per conubia nostra, per inceptos himenaeos. Donec ullamcorper.

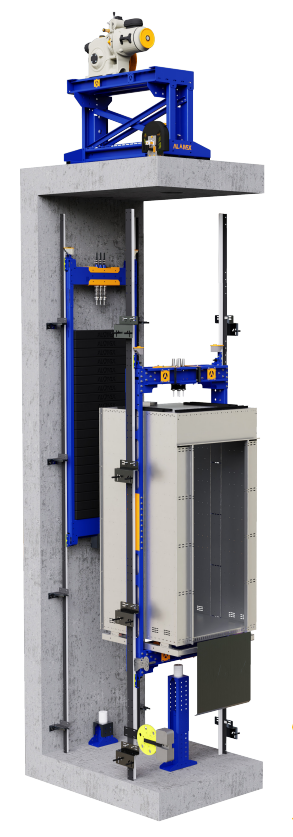

ELEVATOR - MR
The Machine-Room (MR) traction elevator has a machine room above the hoistway, so that the machinery and the equipments are in a separate space from the bucket, making its maintenance much easier.
If we divided the spaces necessary for the installation of an elevator into parts, we could group them into three main parts:
Machine Room
It is one of the most important areas, as it contains the control panel, the traction machine and the speed regulator.
Overhead
The area from the top of the upper finished floor to the nearest overhead obstruction within the shaf
Pit
The depression below the surface of the lowest landing that allows the elevator floor to be level with the floor of the lowest landing
TRACTION

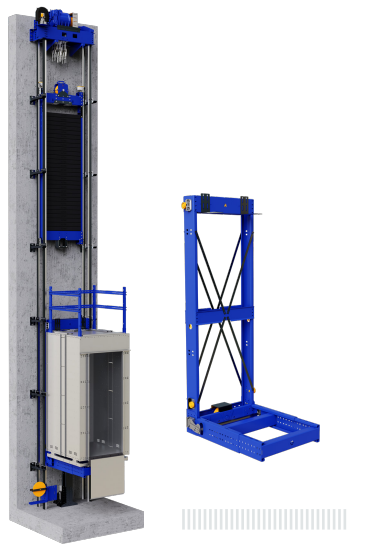

ELEVATOR - MRL- G
It features a compact, quiet, gearless, and highly energy efficient permanent magnet technology machine. The reduced weight and the flexibility of the system make it possible to use a more compact machine that optimizes the occupation of space with a more efficient engine, without oil changes, with minimum need for maintenance and therefore more ecologically advantageous.
Traction elevator MRL-L
The MRL-L traction machine is located inside the shaft, while the control panel is installed in a module on the upper floor next to the elevator entrance.
It has a machine with VVVF technology, compact, silent, gearless and high energy efficiency. The minimum weight and flexibility are possible in the use of a more compact machine that optimizes occupation in space with a more efficient and ecological motor.

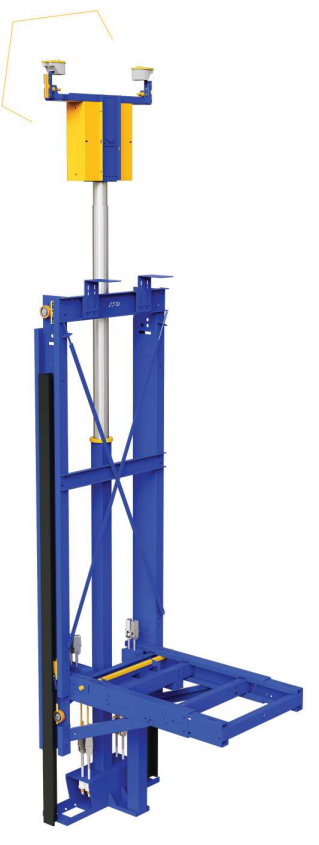

HYDRAULIC
ELEVATOR
The increase in demand in the European market during the last decade, in combination with the flexibility of the new European regulations, guided Alamex towards the design, certification and supply of hydraulic lifts. The power module is the most comfortable option from an architectural point of view, since it can be located in the lower or basement part of the building.
- Travel from 12 to 15 meters
- Smooth and quiet operation.
- Easily adapts to tight spaces.
- In the event of a power outage, it has
- an alternative system that allows reaching the closest level, allowing the safe exit of passengers.
- Energy consumption only on the rise.
- On the way down, use gravity without
- the need to consume.
- low-cost installation and
- maintenance prices.
- Fewer number of components.
Manufactured in accordance with the elevator directive 95/16/EC
Regulations EN - 81. PUBL PB 10-558-03
Capacity range from 320 to 2,000 kg.
Capacity range from 320 to 2,000 kg.
Distance of 100 meters (32 stops)
Speed of 1.0 to 1.6 m/s
Smooth operation and low noise level
Panoramic cabins, a wide range of false ceilings and finishes
Automatic emergency operation
SERVICE ELEVATOR
GUILLOTINE DOOR
- Travel from 12 to 15 meters
- Smooth and quiet operation.
- Easily adapts to tight spaces.
- In the event of a power outage, it has
- an alternative system that allows reaching the closest level, allowing the safe exit of passengers.
- Energy consumption only on the rise.
- On the way down, use gravity without
- the need to consume.
- low-cost installation and
- maintenance prices.
- Fewer number of components.

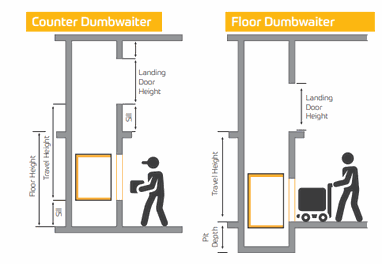

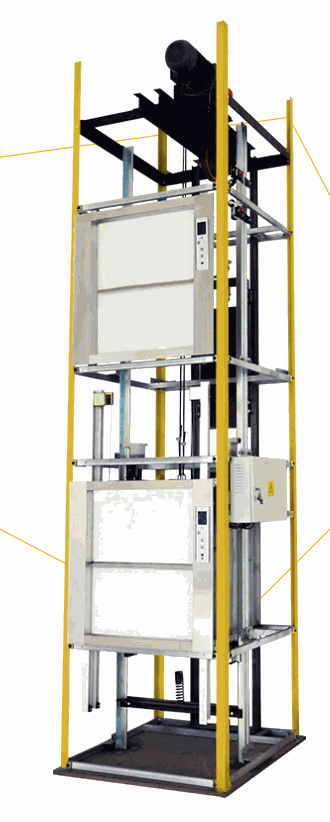

Dumbwaiter is a small service elevator without machine room for minimum capacities. It is suitable for restaurants, hotels, department store or residential buildings.
In accordance with machinery directive 2006/42/EC and EN - 81
A capacity of 250 kg
Trip of up to 30 meters (12 stops)
Smooth and silent operation
Easy and fast installation
Light construction
Minimum height of machine room
Speed of 0.5 m/s
Minimum pit
