Parking System

Alamex potentially satisfy all operating needs

Materials such as galvanized, epoxy covered with steel sheets or stainless steel that can be used depending on the requirements of each project.

These cabins can be used

In heavy industrial applications, warehouses, supermarkets, parking lots, hospitals and shopping centers.

USING THE "KNOW HOW"

In hydraulic elevation, Alamex has entered the growing car lift market. The objective is to offer a complete range of equipment that provides total solutions for access to the parking area by means of elevation, rotation or lateral displacement and to increase the possibilities of parking using elevators.

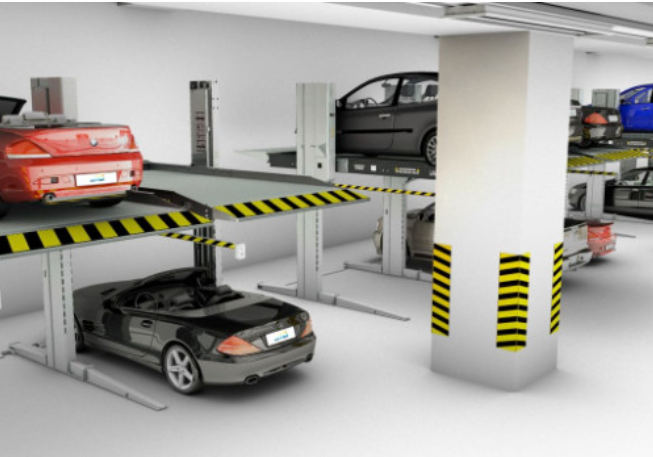

The Alamex automized parking systems are ideal for commercial, public and residential use, especially for buildings with limited space, where parking positions are insufficient.

They are equipped with hydraulic lifting cylinders and ropes, in combination with mechanical interlocks, making them safer and more durable for long-term use

Multiple parking spaces, using all available construction height

Increase parking space, provide additional potential construction.

Low installation cost, does not need additional construction.

Ideal for limited construction areas in addition to reducing pollution.

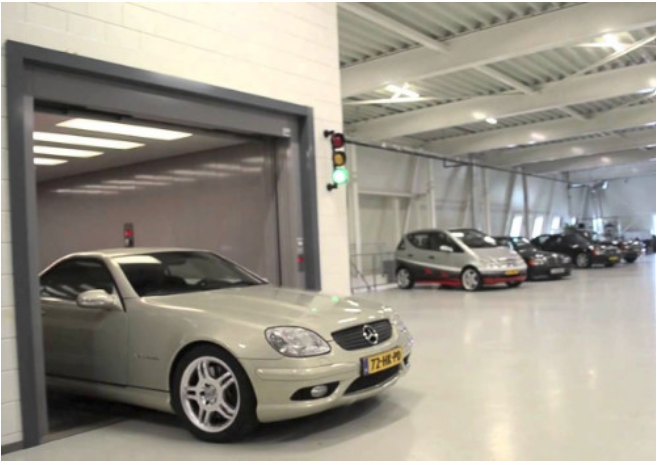

Car Lift

Features

Load capacity up to 3,000 kg.

Displacement up to 12 m.

Automatic call to the outside.

Security mechanism.

It complies with the machine standard 2006/42/EC.

Lifting speed up to 0.15 m/sec.

Admits the driver.

Constant pressure warning inside.

Piston rupture valve.

Specifications


Nominal Load	2.000 KG	2.500 KG	3.000 KG
Platform Depth FP(mm)	5.000-5.500	5.000-5.500	5.000-5.500
Platform Width AP (mm)	2.100-2.500	2.100-2.500	2.100-2.500
total platform Depth (mm)	FP +50	FP +50	FP +50
shaft Depth (mm)	FP + 125	FP + 125	FP + 125
Shaft Width (mm)	AP + 500	AP + 500	AP + 500
minimum Pit (mm)	350	350	AP + 500
Free height Over Head (mm)	2.600	2.600	2.600

Following the policy of quality chosen since the creation of the company, Alame produces a wide range of hydraulic lift packages, applications ranging from elevators for cars, panoramic elevators for automobiles and large elevators for forklifts and tower car parking.

In accordance with the directive of elevators 95/16/EC, regulations En - 81, regulation PUBEL PB 10-558-03 and machinery directive 2006/42/EC.

It has

The capacity range of 20,000 kg

Route of up to 28 meters (10 stops)

Low noise level and smooth operation

Rigid structure

Standard and automatic emergency operation

Machine room anywhere with enough space for the bucket
